Brand Name : Gracias
Place of Origin : China
MOQ : 1set
Price : As discussion
Payment Terms : T/T, L/C, Western Union
Supply Ability : 50sets per month
Delivery Time : 20-40work days
Packaging Details : fit for ocean shipping
Voltage : 380V 50Hz 3phases
Weight : 10T
Condition : New
Tile type : Steel
Warranty : 12 Months
Control system : PLC(imported Brand)
10T Rolling Shutter Door Slats Roll Forming Machine 5.5KW
1. Production specification:
Technical parameters:
NO. | ITEM | PARAMETER | |
1 | Material | type | GI,PPGI |
Width | 225mm | ||
thickness | 0.3-0.8mm | ||
Yield stress | 350-550Mpa | ||
2 | Decolier | Type | Automatic with coil car |
Suitable coil OD/ID | 1600/570mm | ||
Max coil width | 1250mm | ||
Max capacity | 10T | ||
3 | Main machine | Roller | 80mm |
45#steel chrome plated | |||
Main machine structure | Guide column or wallboard | ||
4 | Power requirement | Main motor | 5.5kw |
Hydraulic pump |
3kw |

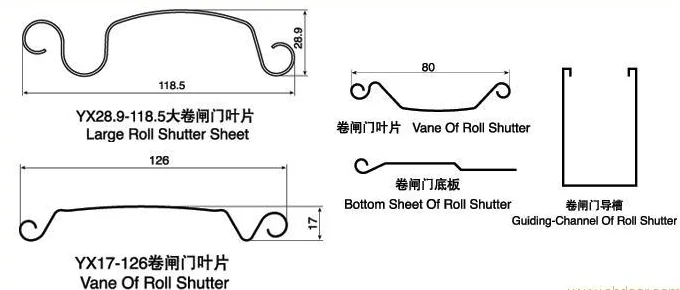

Product display:
![]() |
10T Rolling Shutter Door Slats Roll Forming Machine 5.5KW Images |
